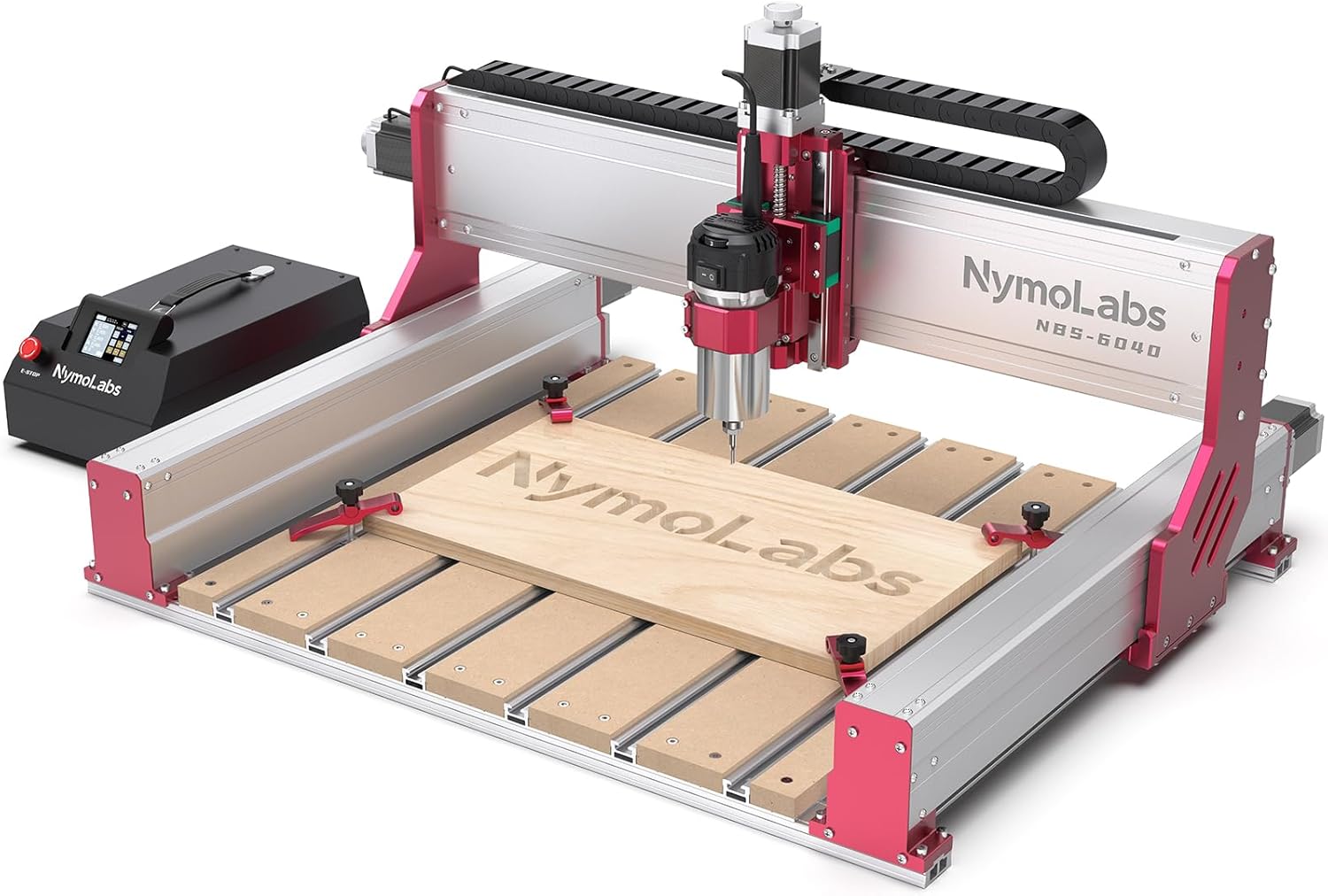

NBS-6040 CNC Router Machine with Custom-Made 710W 7000-30000 RPM Trim Router Spindle & ER-11 Collet, Linear Rails & Ball Screws on 3-axis, Engraving for Wood Acrylic Aluminum

Product Overview

• Brand: NYMOLABS
• Material: Aluminum
• Power Source: Corded Electric
• Product Dimensions: 30"W x 19.9"H
• Voltage: 110 Volts

Product Features

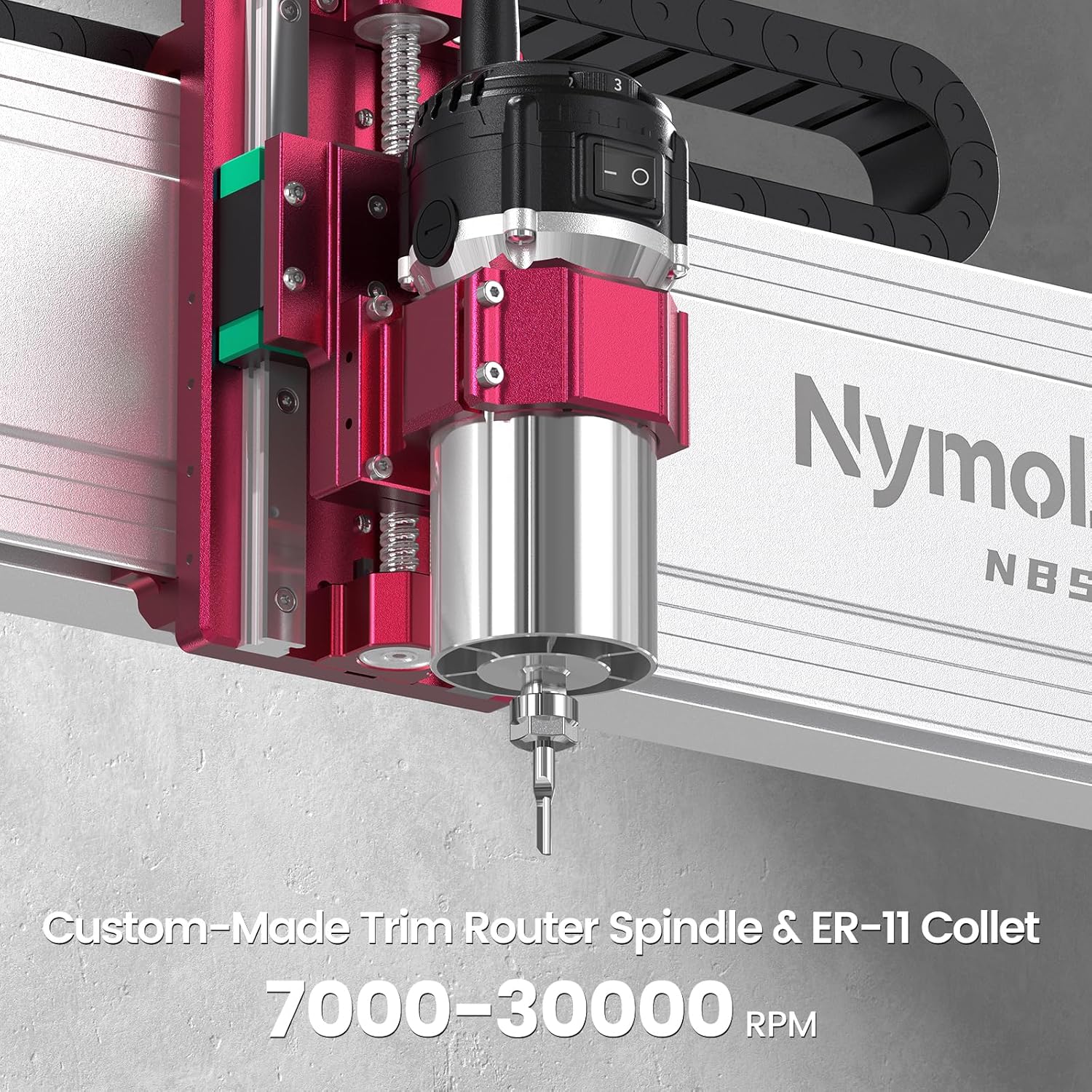

• NymoLabs Custom-made 710W Router: The NBS-6040 features the Self-developed Trim Router as a spindle, a Second-to-none move in the market. Its soft start, and constant current drive features, make the spindle RPM slow to fast without stalling, ranging from 7000 to 30000 adjustable

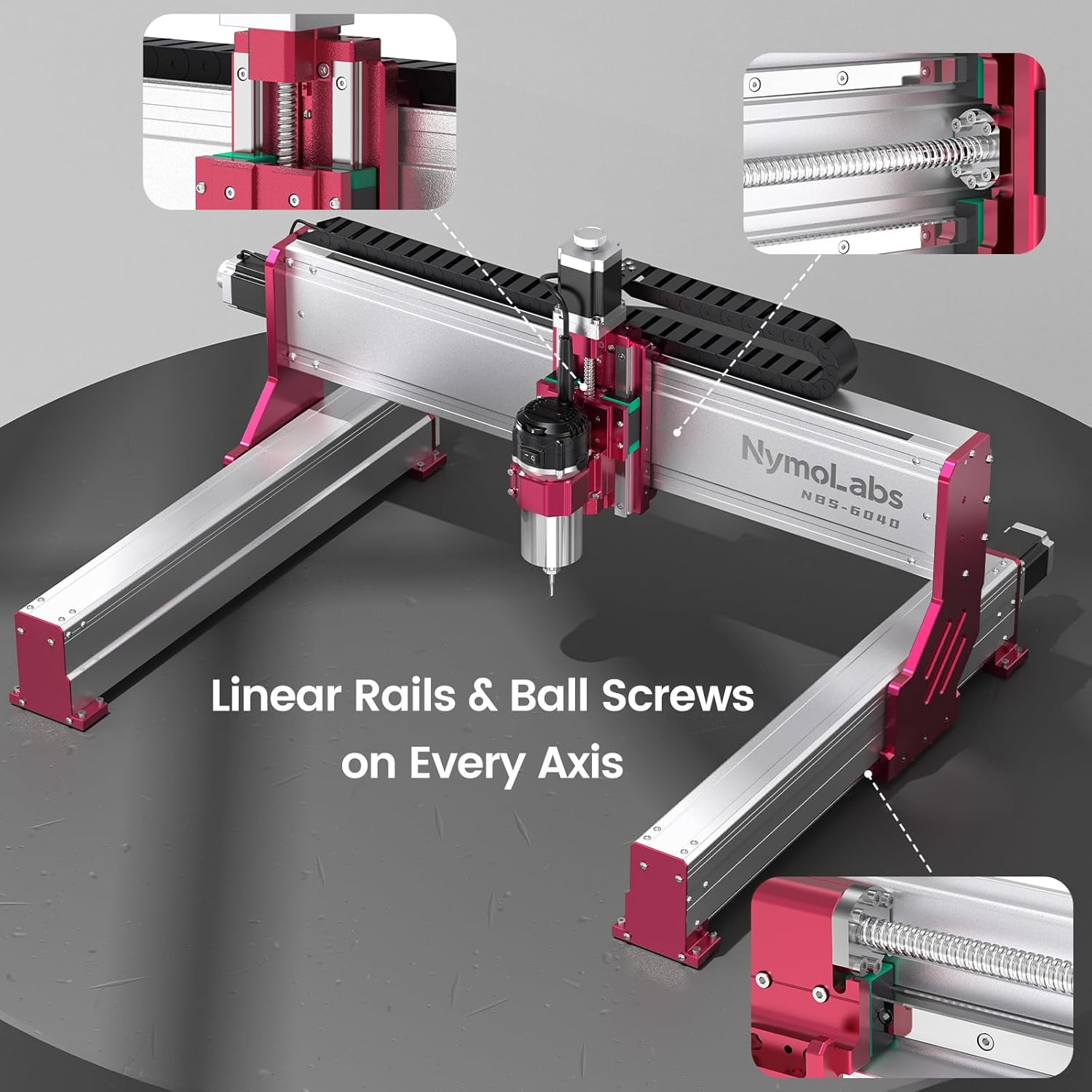

• Linear Rails & Ball Screws on Every Axis: The NBS-6040 uses linear rails and ball screws on every axis for increased productivity and accuracy. These are built for much larger, heavier machines and maintain the rapid movement that 6040 has always been capable of while adding a ton of rigidity
• Based on Open-source Grbl v1.1: The NBS-6040 CNC router features the driver with 32-bit chips, making the pulse frequency up to 80 KHZ. It also supports transforming the code files from offline controller to local memory to engraving stabler
• Create a New and Friendly Maker Ecology: we reserved a series of expansion function ports when designing, including the fourth-axis expansion (four-axis linkage), MPG, Z probe tool set, air pump port, lighting port, air blowing, and dust boot placement,.etc

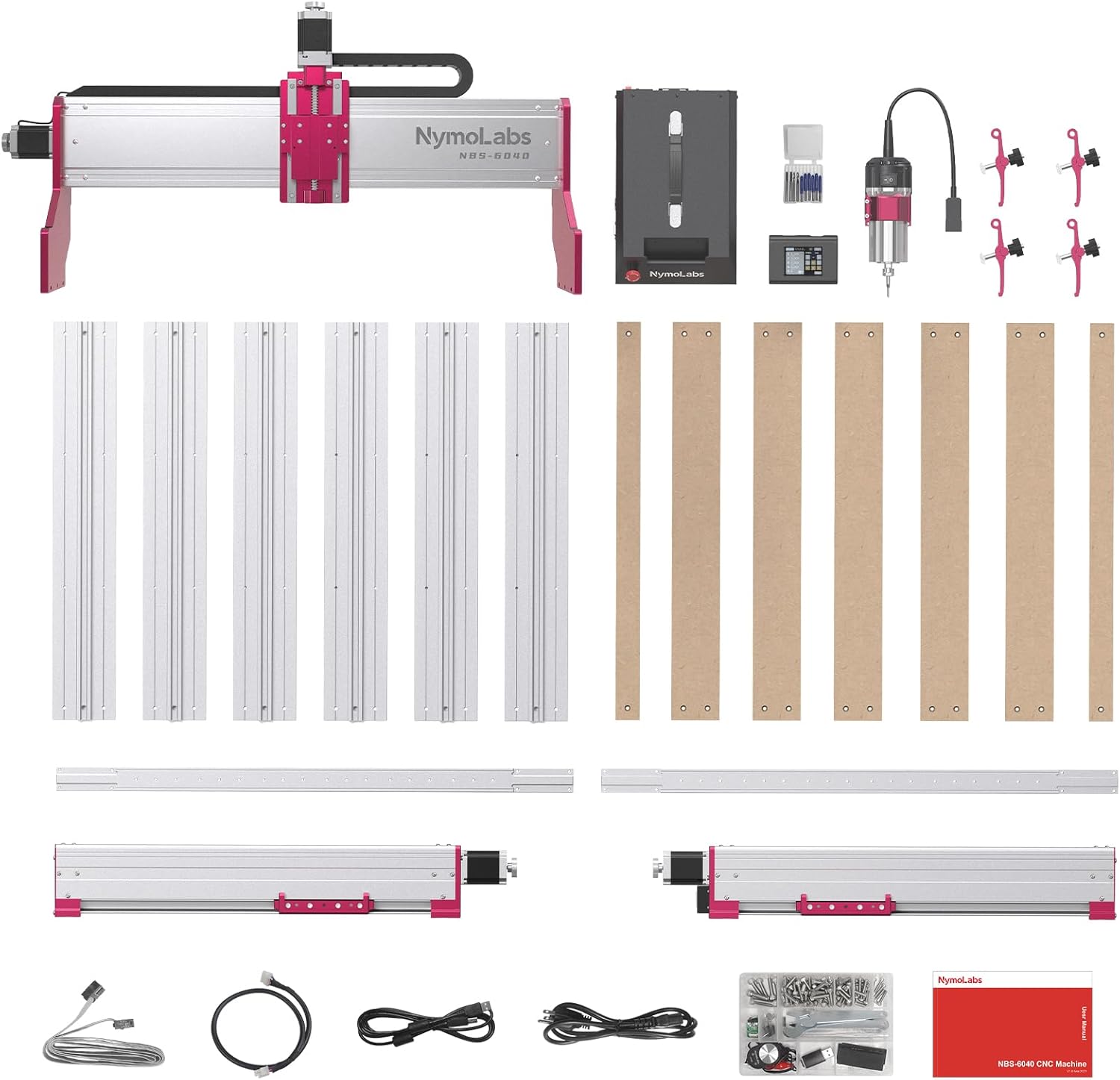

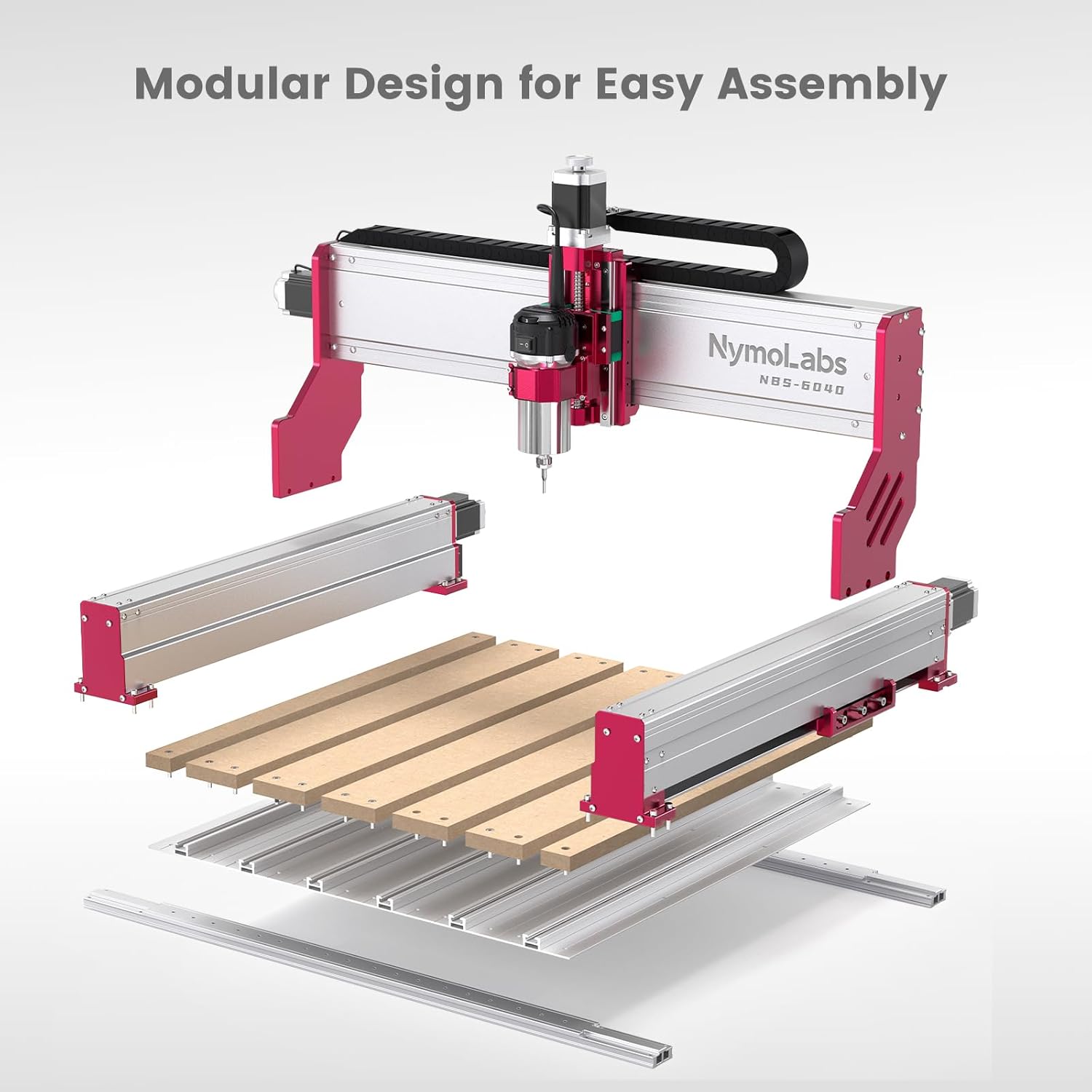

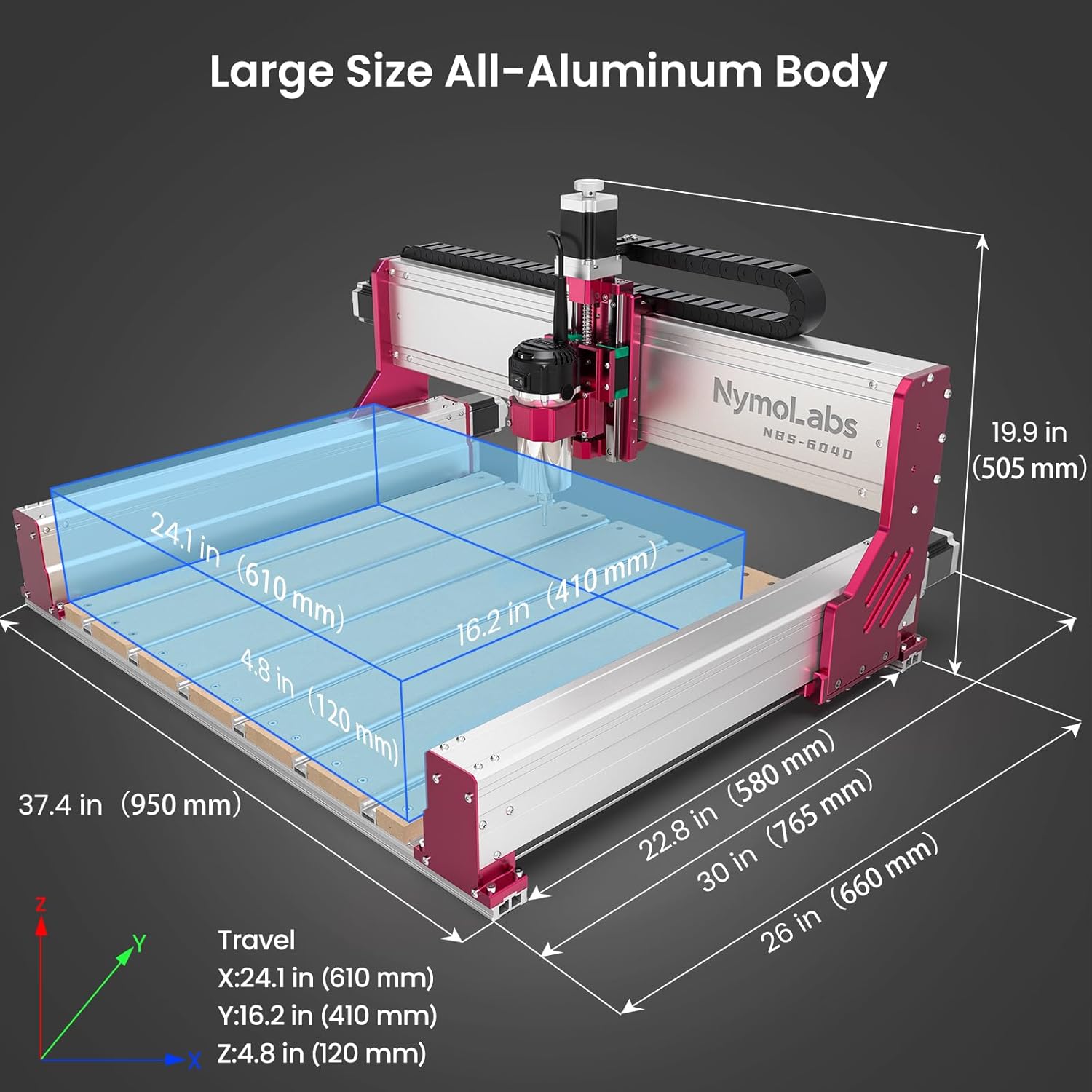

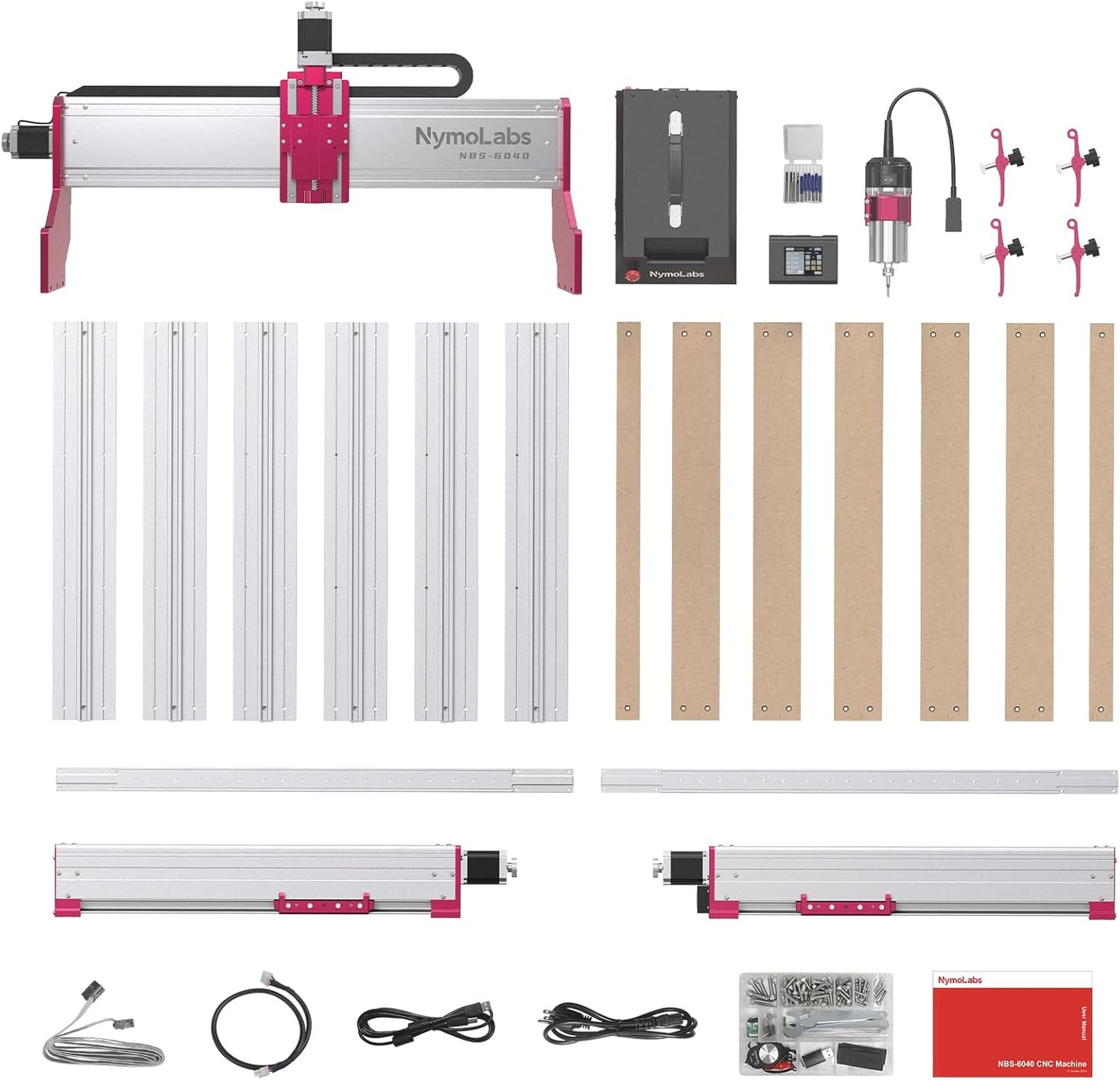

• Modular Design: The pre-assembled modular design makes the 20-minute installation possible, with just a few installation steps and wiring of electronics before starting your projects. Now with a larger working area (24.12" x 16.21" x 4.80")

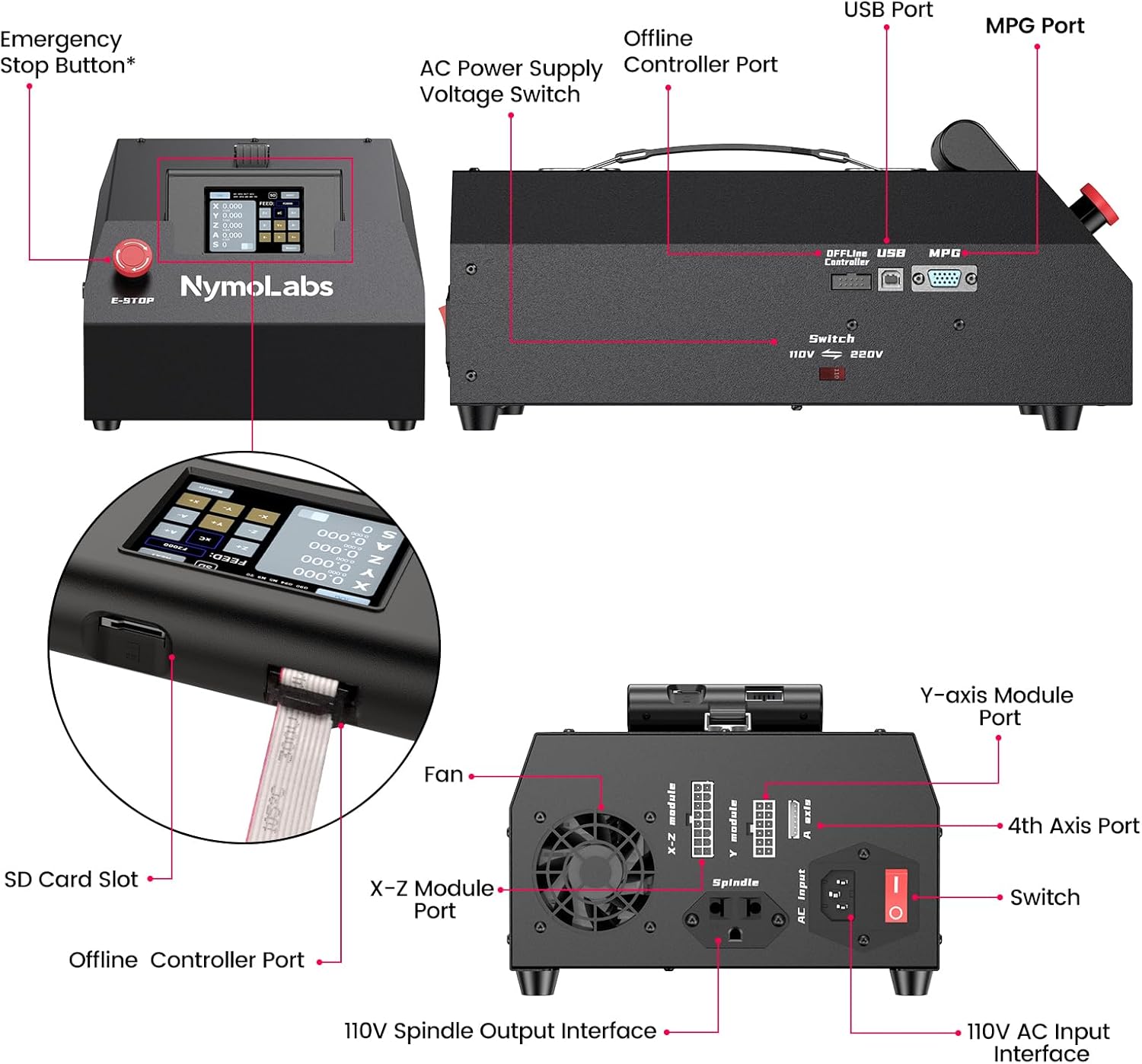

• TFT Touchscreen Offline Controller: With a 2.8” touchscreen display, the NBS-6040 offline controller makes controlling your engraving machine simple and convenient. Users can operate 6040 manually, or put it on the Electric Controller Box reserved placement
• Tips: ER11 Collet Gripping Range: 1-8mm, 1/4", 1/8". The ER-11 Router is made for use in CNC machines so we skip all of the bases and jigs that won't be used anyway. The 1/4" collet is Not included in the package

Product Information

Brand	‎NYMOLABS
Material	‎Aluminum
Power Source	‎Corded Electric
Product Dimensions	‎30"W x 19.9"H
Voltage	‎110 Volts
Horsepower	‎0.95 Horsepower
Maximum Rotational Speed	‎30000 RPM
Base Type	‎Fixed
Battery Description	‎Corded Electric
Manufacturer	‎NYMOLABS
Part Number	‎NBS-6040-AJ
Item Weight	‎128.7 pounds
Item model number	‎NBS-6040-AJ
Item Package Quantity	‎1
Batteries Included?	‎No
Batteries Required?	‎No
Description Pile	‎Corded Electric
ASIN	B0CHJL8XCZ
Customer Reviews
Best Sellers Rank
Date First Available	September 7, 2023
